### **QuadMesh**
* * * * *
**Description**:

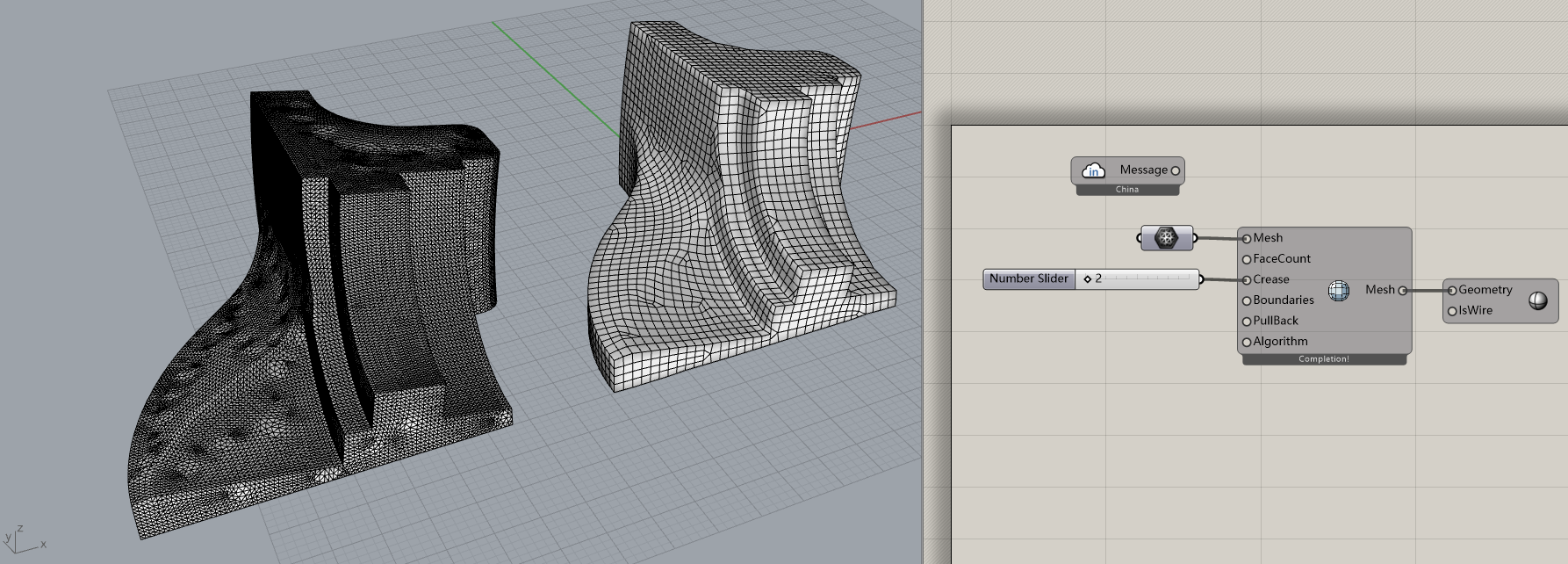

This component has the ability to create pure quad meshes from closed geometry using InstantMeshes and Quadriflow. To get started, please right-click the component and click "Solve". If you wanna stop it, you can select "Stop" to kill the process.
**BTW**: This component is a function in Ameba Pro. Please login first before use. It is notices that this function has not effective in the processing of opened meshes.
:-: ![](https://img.kancloud.cn/9b/d5/9bd591c340de54576b6a3c6d802556a6_1786x642.png)
**Input**:
* Mesh: A mesh model that needs to be remeshed.
* FaceCount: The number of faces.
* Crease: The dihedral angle of the crease.
* Boundaries: Align boundaries (used only when the grid is not closed).
* PullBack: Pulls the generated mesh vertices back to the original model.
* Algorithm: Algorithm switching, using the InstantMesh algorithm for False and Quadriflow algorithm for True (slow, good quality, but may fail to calculate).
**Output**:
* Mesh: Outputs the reconstructed quad mesh.

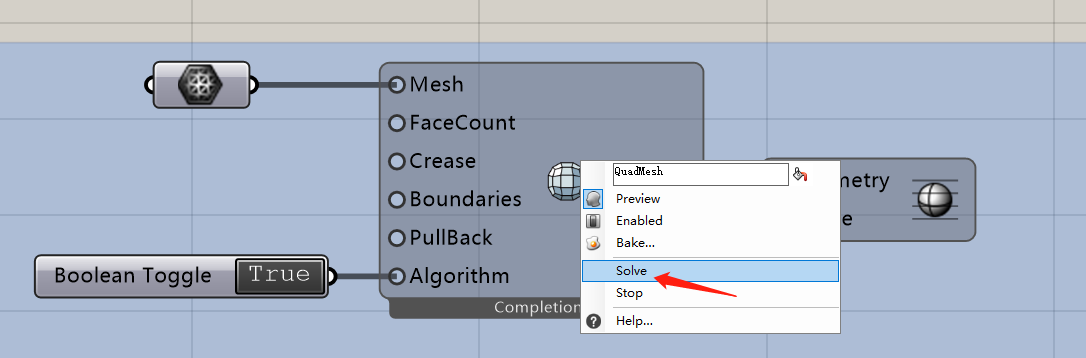

**Right click menu**:
* Solve: Start the calculation.
* Stop: Terminate the calculation.
:-: ![](https://img.kancloud.cn/35/ef/35efb708b94d710e864d4345e0d9e64e_1086x358.png)
**Thanks**:
* QuadMesh's **Instant Meshes** algorithm is based on the publication:
[Instant Field-Aligned Meshes](http://igl.ethz.ch/projects/instant-meshes/instant-meshes-SA-2015-jakob-et-al.pdf)
Wenzel Jakob, Marco Tarini, Daniele Panozzo, Olga Sorkine-Hornung
In *ACM Transactions on Graphics (Proceedings of SIGGRAPH Asia 2015)*
* QuadMesh's **Quadriflow** algorithm is based on the publication:
[QuadriFlow: A Scalable and Robust Method for Quadrangulation](http://stanford.edu/~jingweih/papers/quadriflow/quadriflow.pdf)
